PERMANENT ROOF ANCHOR

A permanent roof anchor is a significant part of Personal Fall Arrest Systems (PFAS) and Fall Restraint Systems used while working on roofs. When attached to the ridge of a wooden roof and used with compatible safety systems, this safety anchor helps limit the forces associated with fall arrest. It was built to be used with other components of a PFAS that limit maximum arrest forces to 900 lbs. or less.

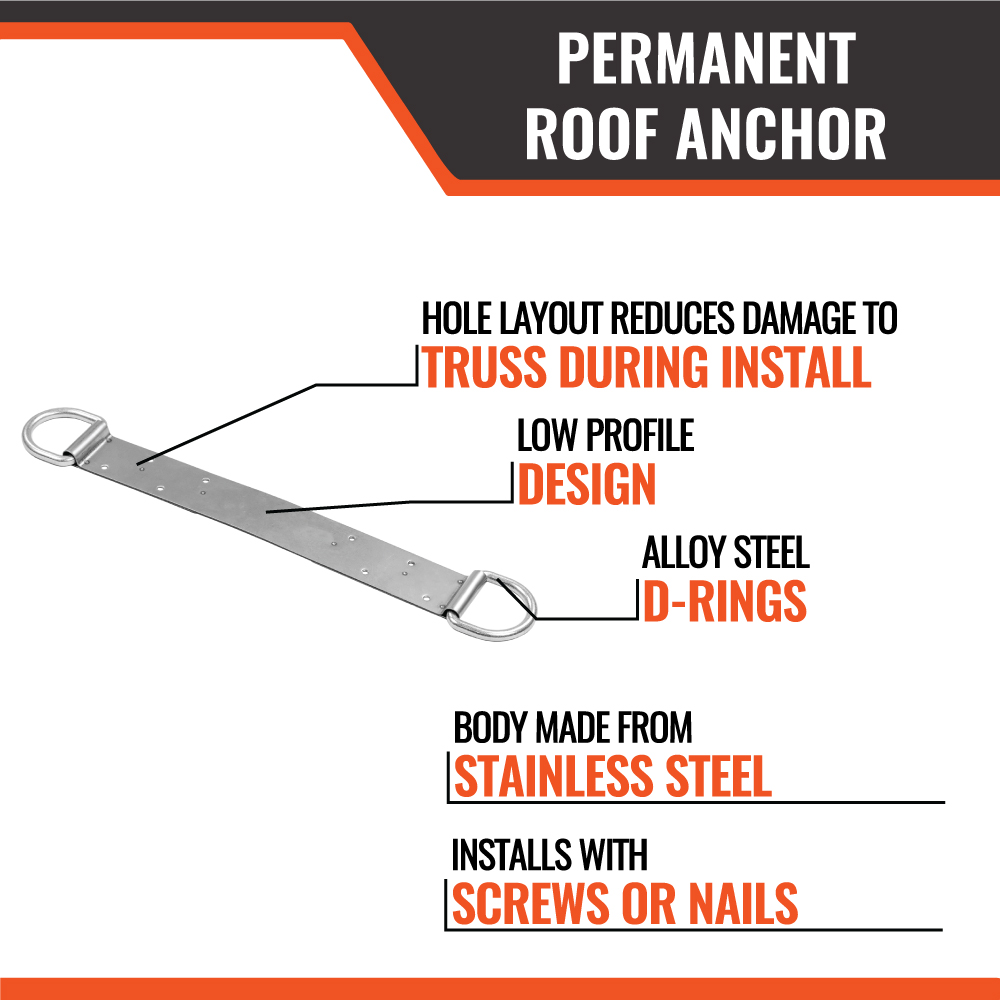

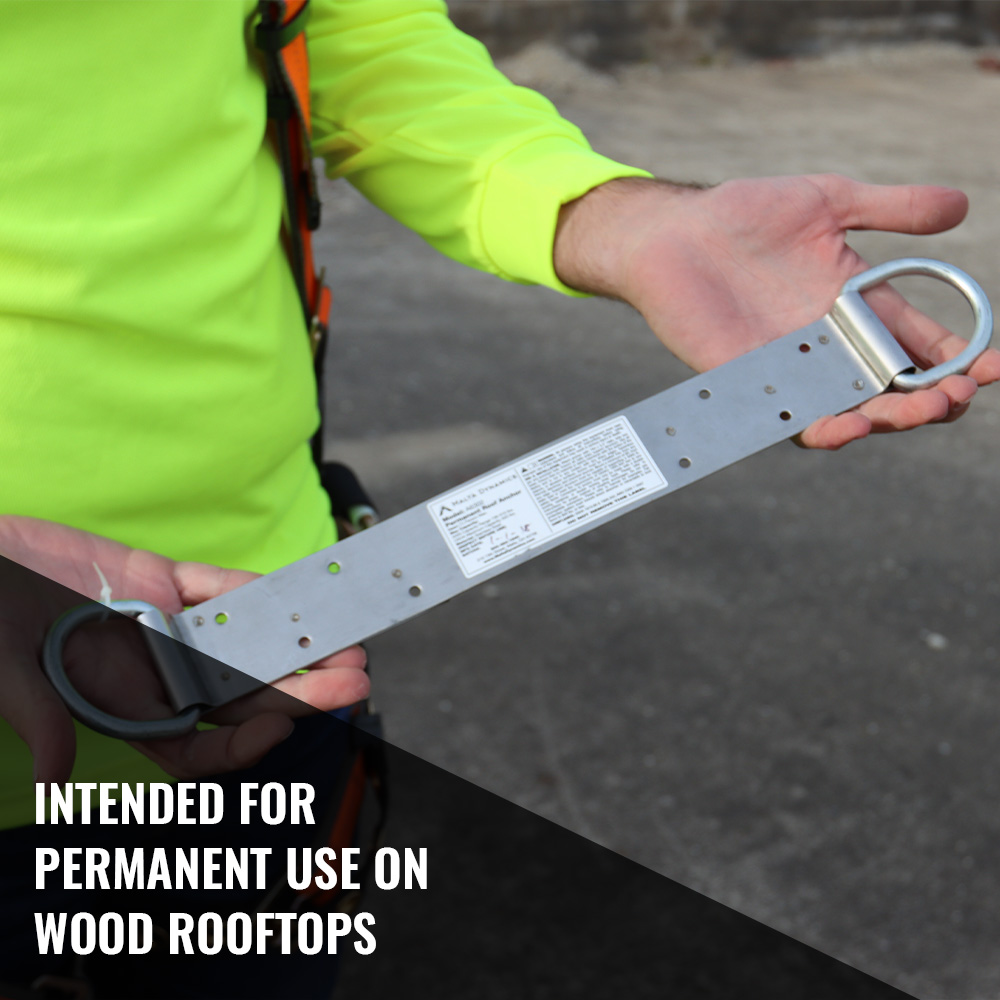

Designed for wood rooftops and permanent applications, the Malta Dynamics roof safety anchors have two D-Ring ends made from top-quality metal (alloy steel) and an 18″ stainless steel body for an exceptionally long life. Like all products at Malta Dynamics, the Permanent Roof Anchor is entirely compliant with all applicable ANSI and OSHA regulations. The Permanent Anchor is designed for ease of installation and built to withstand the toughest environments, ideal for both residential maintenance and construction work.

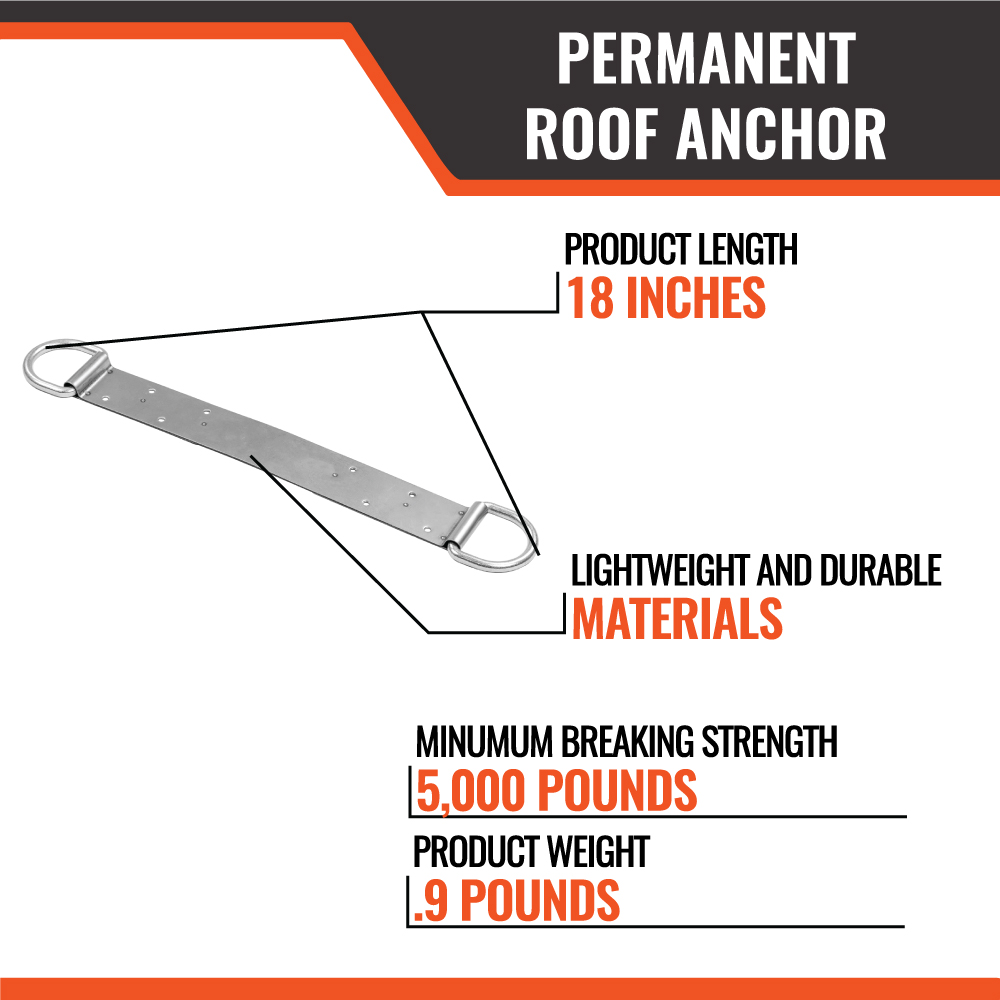

The tensile breaking strength of this rugged stainless steel roof anchor is a minimum of 5,000 lbs. (22.2 kN) in ANSI testing. Even with such powerful capabilities, it weighs just under 1 lb. and features a sleek, discreet appearance. Its unique pre-drilled hole layout also helps minimize truss damage that could occur during installation. Fasteners (nails) are included, too, so you can be confident in the installation.

Using these permanent roof anchors alongside the right safety harness can help you create safer, easier fall protection for your team. Browse our selection of harnesses and harness accessories for high-quality equipment from the industry leaders at Malta Dynamics.

How to Install a Permanent Roof Anchor

Permanent roof anchor installation is straightforward with this Malta Dynamics fall protection anchor. You can spend less time installing and more time getting to work. Before installing the safety anchor, carefully inspect it, along with the roof’s trusses, rafters, and structural members. You’ll need to ensure the roof is structurally sound and that the permanent roof anchor is not damaged in any way. You will also need to select a site that meets OSHA requirements, including minimized swing fall hazards and a limited free-fall distance of less than 6 feet.

All employees must be trained by a Competent Person, as defined by OSHA. Explore our training options if your team needs a refresher on fall protection awareness.

Permanent roof anchor installation instructions are as follows:

1. Ensure you are working on a roof constructed of wood, the permanent roof anchor is not designed for metal roof materials.
2. Remove 1-2 pieces of the ridge cap if installing on residential roofing with asphalt shingles, shakes, or tile.
3. Center the anchorage device on the ridge of the framing assembly and position it so the nail holes on the center of the legs are directly centered with the middle of the roof framing member.
4. Use 16d common nails to secure the bracket with all provided nail holes. No nails should split the timber or protrude through the side of the members

These steps are a brief overview of the installation procedures required for this permanent roof anchor for fall protection — see the manual for more comprehensive instructions and use guidelines.

The Malta Dynamics Difference

Malta Dynamics specializes in quality fall protection systems and is a trusted industry leader providing safety equipment throughout the nation. We are a full-service manufacturer that takes care of design, engineering, and manufacturing for fall protection products across many different industries. Our equipment exceeds OSHA requirements and is built in an ISO-17025 laboratory that uses ANSI testing procedures for reliable manufacturing practices. We emphasize the use of high-strength materials engineered for durability and long-term performance. Put safety first with a permanent roof anchor that’s designed for the task and meets OSHA standards.

If you have any questions about the Malta Dynamics Permanent Roof Anchor, please reach out to us online or at (800) 494-1840!

Product Downloads:

Anchor Manual

Anchor Spec Sheet

Declaration of Conformity
